Database Porgramming : Creating a simple phone book using Java & a database ( HSQLDB )

[info] You to have Java and Eclipse Configured and Installed. If not please install the JDK and download Eclipse[/info] In one of the last tutorial, we have created a simple phonebook system using a text file and Java Programming. For more details, click here.

In this tutorial, we will be creating the same project but with the integration of a simple database management system called ( HSQLDB ). The program will be a textual interactive application without a graphical interface for the sake of simplicity ! We will be having three main sections for writing the software:

  1. Interaction with the user.
  2. Database Initialisation.
  3. Phonebook operations ( Add, delete, search …)

1. Interaction with the user

Before, we begin! let’s write a simple skeleton for the program to interact with the user !

1) Create a project using Eclipse ( or other IDE ), let’s call it : MyPhoneBook

2) Create a Class and call it : PhoneBook

[info] Click here for how to create a project using Eclipse[/info]

import java.io.*;
import java.sql.*;
import java.util.*;

public class PhoneBook {
	public static String help_msg=	"Press: H  Help   -  A  Add contact  -  S  Search  - Q  Exit :";
	public static void main(String[] args) {
		System.out.println("\n\n***** Welcome to MyPhone Book *****\n\n");
		Scanner s=new Scanner(System.in);
		for(;;){
				System.out.print("[Main Menu] "+help_msg+"\n:");
				String command=s.nextLine().trim();

				if (command.equalsIgnoreCase("H")){
					System.out.println(help_msg);
				}else if (command.equalsIgnoreCase("A")){
					System.out.print("Type in contact details in the format: name,lastname,phone\n:");

				}else if (command.equalsIgnoreCase("S")){
					System.out.print("Type in the name you are searching for :\n:");

				}else if (command.equalsIgnoreCase("Q")){
					System.out.println("Good Bye User....");
					System.exit(0);
				}else{
					System.out.print("Unknown command ! Try again \n:");
				}

		}

	}

}

The above is a simple skeleton for interacting with the user asking for command to be typed.

d2



2. Database Initialisation

1) Let’s modify the code above to include a few lines to connect to the DBMS:

import java.io.*;
import java.sql.*;
import java.util.*;

    public class PhoneBook {
    	public static String help_msg=	"Press: H Help - A Add contact - S Search - Q Exit :";
    		public static void main(String[] args)  {
    			try{
    		            Connection con=null;
    		            Class.forName("org.hsqldb.jdbc.JDBCDriver");
    		            con=DriverManager.getConnection("jdbc:hsqldb:mydb2","SA","");
    		            con.createStatement().executeUpdate("SET DATABASE SQL SYNTAX MYS TRUE");
    		            con.createStatement().executeUpdate("create table IF NOT EXISTS contacts ("+
    		            		"id int auto_increment primary key," +
    		            		"name varchar(45)," +
    		            		"lname varchar(45),"+
    		            		"phone varchar(45))");

					    System.out.println("\n\n***** Welcome to MyPhone Book *****\n\n");
					    Scanner s=new Scanner(System.in);
					    for(;;){
						    System.out.print("[Main Menu] "+help_msg+"\n:");
						    	String command=s.nextLine().trim();

						    if (command.equalsIgnoreCase("H")){
						    	System.out.println(help_msg);
						    }else if (command.equalsIgnoreCase("A")){
						    	System.out.print("Type in contact details in the format: name,lastname,phone\n:");
						    }else if (command.equalsIgnoreCase("S")){
						    	System.out.print("Type in the name you are searching for :\n:");
						    }else if (command.equalsIgnoreCase("Q")){
							    System.out.println("Good Bye User....");
							    System.exit(0);
						    }else{
						    	System.out.print("Unknown command ! Try again \n:");
						    }
					    }

    			}catch(Exception e){
    				e.printStackTrace();
    			}
		}
    }

Explanation:

  • Connection con=null;  Creates an null conncetion object
  • Class.forName(“org.hsqldb.jdbc.JDBCDriver”); : loads the JDBC driver for the DBMS server into the runtime.
  • con=DriverManager.getConnection(“jdbc:hsqldb:mydb2″,”SA”,””);  connects to the DBMS using username SA, empty password. The name of the database is mydb2
  • con.createStatement().executeUpdate(“SET DATABASE SQL SYNTAX MYS TRUE”); Executes an SQL query : To set the syntax to MySQL
  • con.createStatement().executeUpdate(“…. : Executes an SQL query : Creating a Table…

[info]We use con.createStatement().executeUpdate(““); for SQL queries that do not return results like : insert, update, delete, alter…[/info]

3. Phonebook Operations

Let’s try this new code :

import java.io.*;
import java.sql.*;
import java.util.*;

    public class PhoneBook {
    	public static String help_msg=	"Press: H Help - A Add contact - S Search - Q Exit :";
    		public static void main(String[] args)  {
				Connection con=null;
    			try{
    		            Class.forName("org.hsqldb.jdbc.JDBCDriver");
    		            con=DriverManager.getConnection("jdbc:hsqldb:mydb7","SA","");
    		            con.createStatement().executeUpdate("SET DATABASE SQL SYNTAX MYS TRUE");
    		            con.createStatement().executeUpdate("create table IF NOT EXISTS contacts ("+
    		            		"id int auto_increment primary key," +
    		            		"name varchar(45)," +
    		            		"lname varchar(45),"+
    		            		"phone varchar(45))");

					    System.out.println("\n\n***** Welcome to MyPhone Book *****\n\n");
					    Scanner s=new Scanner(System.in);
					    String command="";
					    for(;;){
						    System.out.print("[Main Menu] "+help_msg+"\n:");
						    command=s.next().trim();
						    if (command.trim().isEmpty()){continue;}

						    if (command.equalsIgnoreCase("H")){
						    	System.out.println(help_msg);
						    /*
						    *
						    *Adding Contacts
						    *
						    */
						    }else if (command.equalsIgnoreCase("A")){
						    	System.out.print("Type in contact details in the format: name,lastname,phone\n:");
							    for(;;){
								    String data=s.next().trim();
								    String [] temp=data.split(",");
								    if (temp.length!=3){
									    System.out.println("Error, the insertion format should be in the format: firstname,lastname,phone :");
									    continue;
								    }
								    con.createStatement().executeUpdate("insert into contacts (name,lname,phone) values" +
																"('"+temp[0]+"','"+temp[1]+"','"+temp[2]+"')");
								    break;
							    }
							/*
							*
							*Searching for Contacts
							*
							*/
						    }else if (command.equalsIgnoreCase("S")){
						    	System.out.print("Type in the name you are searching for :\n:");
						    	String data=s.next().trim();

						    	String q="select * from contacts  where name like '%"+data+"%' or lname like '%"+data+"%'";

								PreparedStatement pst=con.prepareStatement(q);
								pst.clearParameters();
								ResultSet rs=pst.executeQuery();

								System.out.println("********          Results          *********");
								System.out.println("ID\t\tName\t\tLast Name\t\tPhone");
								while(rs.next()){
								    System.out.println(rs.getString(1)+"\t\t"+rs.getString(2)+"\t\t"+rs.getString(3)+"\t\t"+rs.getString(4));
								}
						    /*
						    *
						    *Quiting the system
						    *
						    */
						    }else if (command.equalsIgnoreCase("Q")){
							    Statement st = con.createStatement();
						  	    st.execute("SHUTDOWN");
						  	    con.close();
							    System.out.println("Good Bye User....");
							    System.exit(0);
						    }else{
						    	System.out.print("Unknown command ! Try again: ["+command+"]\n");
						    }
					    }

    			}catch(Exception e){
    				e.printStackTrace();
    			}
		}
    }

Run your Application now:

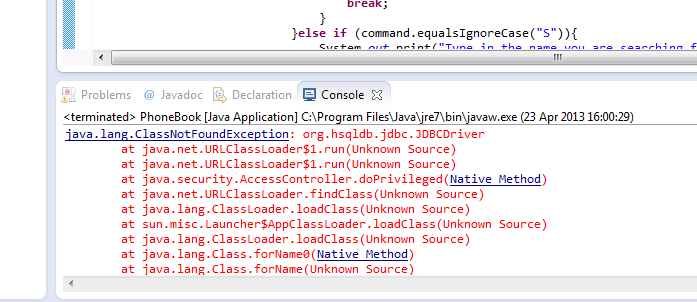

you will get the following error :

javaphone2

To fix it, click Run -> Run Configurations ..

javaphone3



Make sure of selecting the main class name: if it does not show, double click on Java Application

javaphone4

Click on : ClassPath

javaphone5



Click on the name of your project : PhoneDirectory

javaphone6

Click on Add External JARS, and look for your your HSQLDB.jar file

[info]In case you don’t have the HSGLDB,You can download the DBMS : HSQLDB from here [/info]



javaphone7

Click Apply, — > Run

javaphone8


in case you get the following error regarding Failure of Lock Acquisition.

javaphone9

Click on ht (X X) symbol shown below to fix it, then run again.

javaphone10
